Image lighting scheme

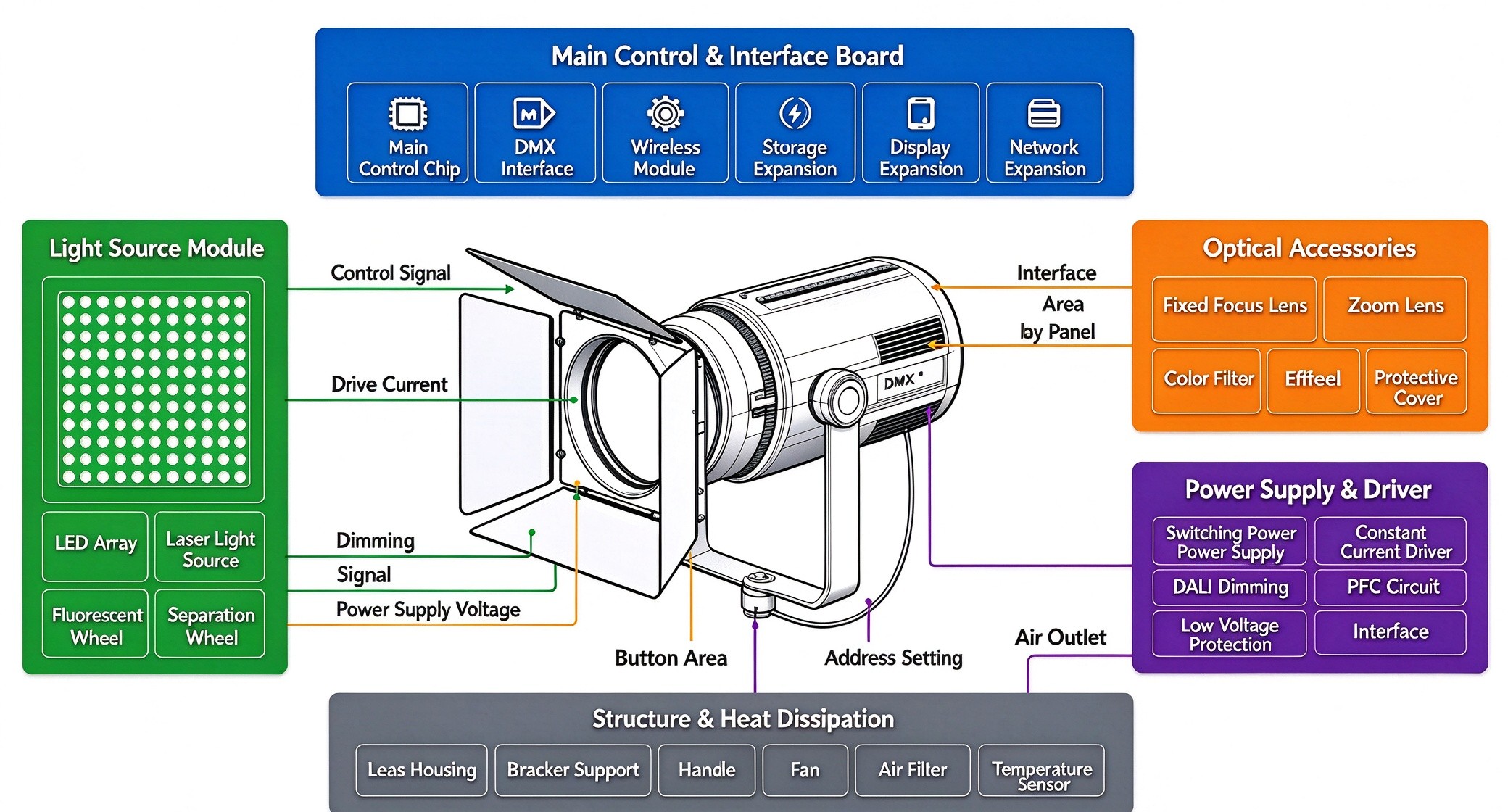

This scheme adopts modular design, and the image lighting system is divided into five modules: main control and interface board, light source module, optical accessories, power supply and driver, structure and heat dissipation. Each module collaboratively completes beam generation, light and shadow control, constant current power supply, and intelligent temperature control, which can be applied to film and television shooting, television broadcasting, stage performances, live recording, and exhibition hall display scenes.

Main control and interface board (system control center): integrates main control chip, DMX interface, wireless module, storage configuration, interface expansion, and power management. Responsible for the overall logic control of the machine, supporting wired and wireless lighting control for DMX/RDM, storing lighting parameters, issuing instructions to coordinate the operation of various modules.

Light source module (beam generation core): receives driving current to complete multi light source photosynthetic output, provides high color rendering and high stability original beam, and feeds back the light signal status.

Optical accessories (light and shadow effect adjustment unit): including control probe, laser probe, soft light mirror, color filter, effect wheel, and protective glass. Shape and color adjust the beam, adjust the beam angle, color temperature, color and pattern, and achieve diverse creative lighting effects.

Power Supply and Drive (Energy Supply Unit): Provides stable and constant current power supply for the light source and main control, suppresses current fluctuations, and ensures the continuous and stable operation of the light source.

Structure and Heat Dissipation (Mechanical Carrier and Thermal Management Unit): Provides mechanical support and angle adjustment. Real time monitoring of lamp body temperature, temperature rise control through heat dissipation components, ensuring stable and reliable high-power long-term operation.
